NON-RETURN - RHV-R - M22X1.5 - 250
1253644
NON-RETURN VALVES RHV-R
Male thread 1,0 bar
Application: Non-return valves enable a flow in one direction and block it in the opposite direction.

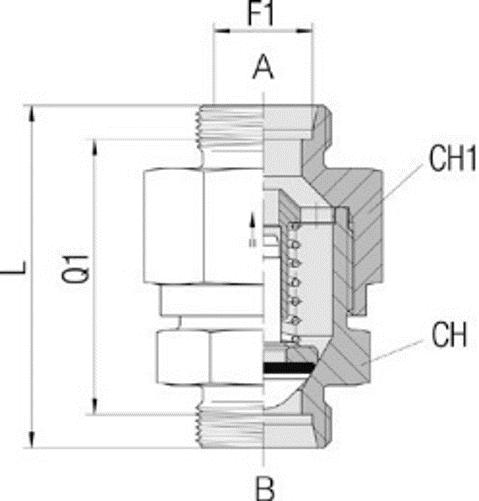

F1: M22X1.5
F2: 1/2-14
WP (bar): 250
Opening wp: 1
:
CH (mm): 30
CH1 (mm): 32
LC (mm): 14
L (mm): 66,5
Q1 (mm): 45,5
