NON-RETURN - RHD - M36X2 - 100
1246842
NON-RETURN VALVES RHD
Male thread 1,0 BAR
Application: Non-return valves enable a flow in one direction and block it in the opposite direction.

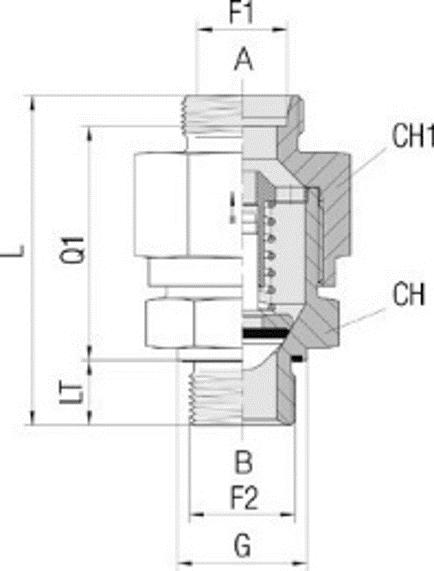

F1: M36X2
WP (bar): 100
Opening pressure (bar): 1
CH (mm): 50
CH1 (mm): 55
L (mm): 85
Q1 (mm): 70
Flow: 2-1
Temp. : -40 - 120
:
