NON-RETURN - RHD - M30X2 - 160
1246841
NON-RETURN VALVES RHD
Male thread 1,0 BAR
Application: Non-return valves enable a flow in one direction and block it in the opposite direction.

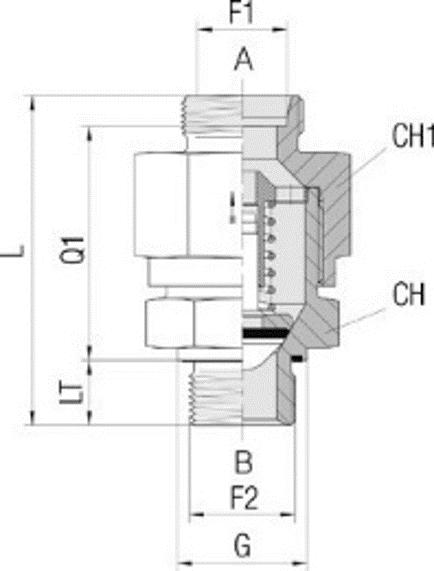

F1: M30X2
WP (bar): 160
Opening pressure (bar): 1
CH (mm): 41
CH1 (mm): 46
L (mm): 76,5
Q1 (mm): 61,5
Flow: 2-1
Temp. : -40 - 120
:
