NON-RETURN - RHD - M22X1.5 - 250
1246839
NON-RETURN VALVES RHD
Male thread 1,0 BAR
Application: Non-return valves enable a flow in one direction and block it in the opposite direction.

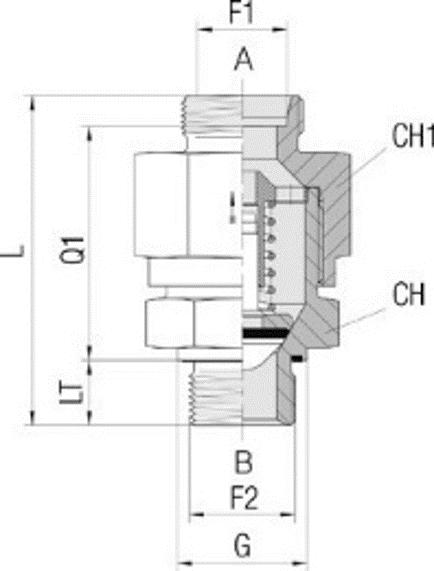

F1: M22X1.5
WP (bar): 250
Opening pressure (bar): 1
CH (mm): 30
CH1 (mm): 32
L (mm): 61,5
Q1 (mm): 47,5
Flow: 2-1
Temp. : -40 - 120
:
