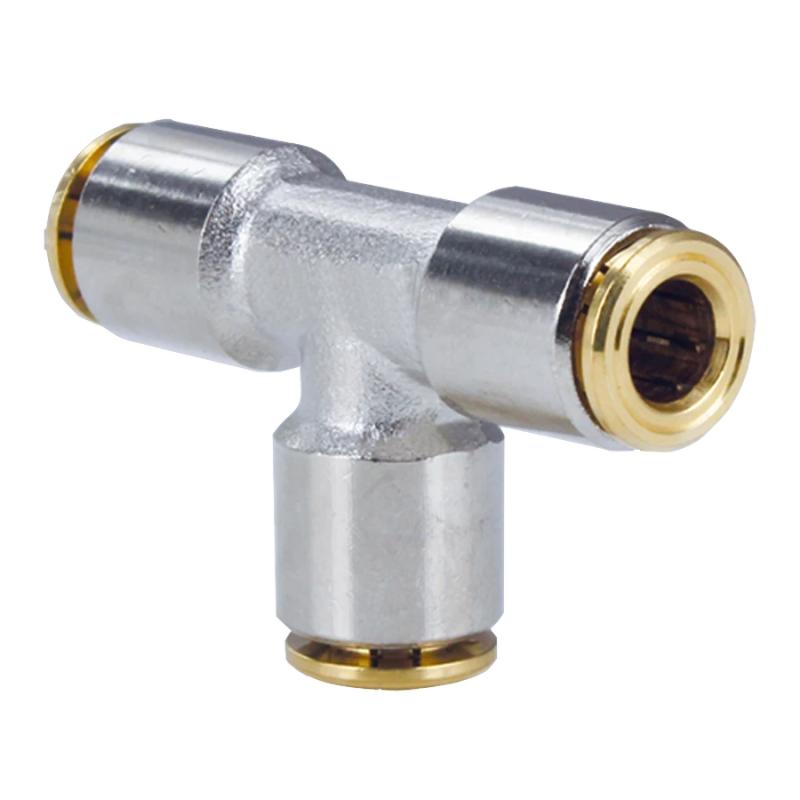

Medium Pressure Push-in Fittings, 80 bar 8MM MP290808

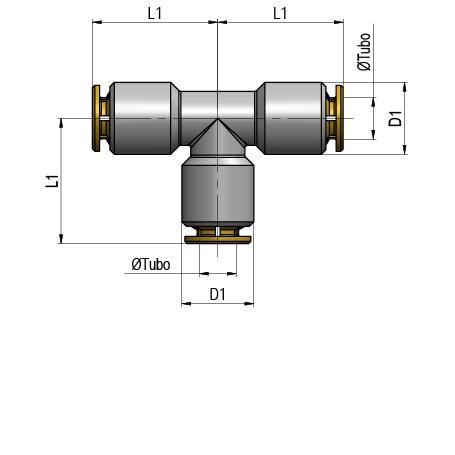

| TYPE | MAT | D1 | WT | WP | AF | D1IN | G | L1 | L1IN | OZ | VAR_TUBO | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MP29 04 04 | Brass Nickel Plated | 9 | -20/+80 °C | 0/80 bar | --- | 0,354 | 21,3 | 19,5 | 0,768 | 0,751 | 4 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP29 06 06 | Brass Nickel Plated | 12 | -20/+80 °C | 0/80 bar | --- | 0,472 | 24,8 | 20,5 | 0,807 | 0,875 | 6 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP29 08 08 | Brass Nickel Plated | 14 | -20/+80 °C | 0/80 bar | --- | 0,551 | 31,7 | 21,5 | 0,846 | 1,118 | 8 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
