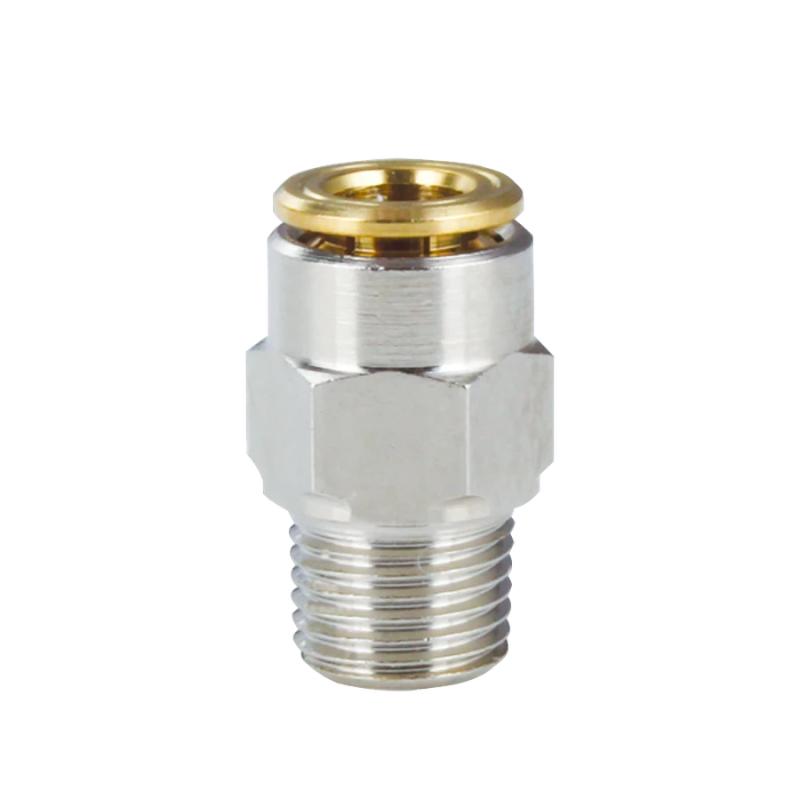

Medium Pressure Push-in Fittings, 80 bar 4MM X M6X1-MP1104M6X1

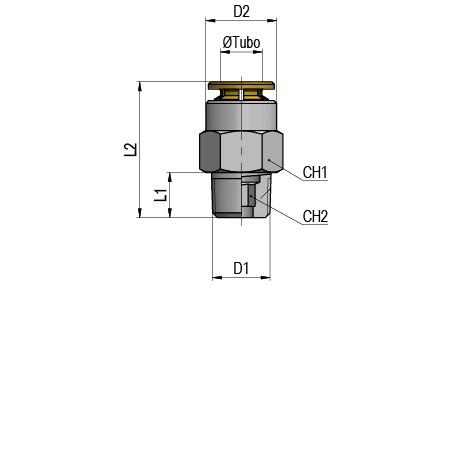

| TYPE | MAT | D1 | WT | WP | AF | D2 | D2IN | CH1 | CH2 | G | L1 | L1IN | L2 | L2IN | OZ | VAR_TUBO | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MP11 04 18 | Brass Nickel Plated | R1/8 | -20/+80 °C | 0/80 bar | --- | 9 | 0,354 | 10 | 3 | 7,3 | 7,5 | 0,295 | 18,5 | 0,728 | 0,257 | 4 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 06 18 | Brass Nickel Plated | R1/8 | -20/+80 °C | 0/80 bar | --- | 11,8 | 0,465 | 12 | 4 | 10,3 | 7,5 | 0,295 | 22 | 0,866 | 0,363 | 6 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 08 18 | Brass Nickel Plated | R1/8 | -20/+80 °C | 0/80 bar | --- | 13,8 | 0,543 | 14 | 5 | 15,4 | 7,5 | 0,295 | 25 | 0,984 | 0,543 | 8 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 08 14 | Brass Nickel Plated | R1/4 | -20/+80 °C | 0/80 bar | --- | 13,8 | 0,543 | 14 | 6 | 16,4 | 11 | 0,433 | 25 | 0,984 | 0,578 | 8 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 04 M6x1 | Brass Nickel Plated | M6x1 | -20/+80 °C | 0/80 bar | --- | 9 | 0,354 | 10 | 2,5 | 7,6 | 8 | 0,315 | 23,2 | 0,913 | 0,268 | 4 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 06 M6x1 | Brass Nickel Plated | M6x1 | -20/+80 °C | 0/80 bar | --- | 11,8 | 0,465 | 12 | 2,5 | 11,8 | 8 | 0,315 | 26 | 1,024 | 0,416 | 6 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 04 M8x1 | Brass Nickel Plated | M8x1 | -20/+80 °C | 0/80 bar | --- | 9 | 0,354 | 10 | 3 | 6,7 | 8 | 0,315 | 20 | 0,787 | 0,236 | 4 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 06 M8x1 | Brass Nickel Plated | M8x1 | -20/+80 °C | 0/80 bar | --- | 11,8 | 0,465 | 12 | 4 | 12,3 | 8 | 0,315 | 26 | 1,024 | 0,434 | 6 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 04 M10x1 | Brass Nickel Plated | M10x1 | -20/+80 °C | 0/80 bar | --- | 9 | 0,354 | 11 | 3 | 9,3 | 8 | 0,315 | 20 | 0,787 | 0,328 | 4 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 06 M10x1 | Brass Nickel Plated | M10x1 | -20/+80 °C | 0/80 bar | --- | 11,8 | 0,465 | 12 | 4 | 10,9 | 8 | 0,315 | 22,5 | 0,886 | 0,384 | 6 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP11 08 M10x1 | Brass Nickel Plated | M10x1 | -20/+80 °C | 0/80 bar | --- | 13,8 | 0,543 | 14 | 5 | 16,4 | 8 | 0,315 | 25,5 | 1,004 | 0,578 | 8 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
