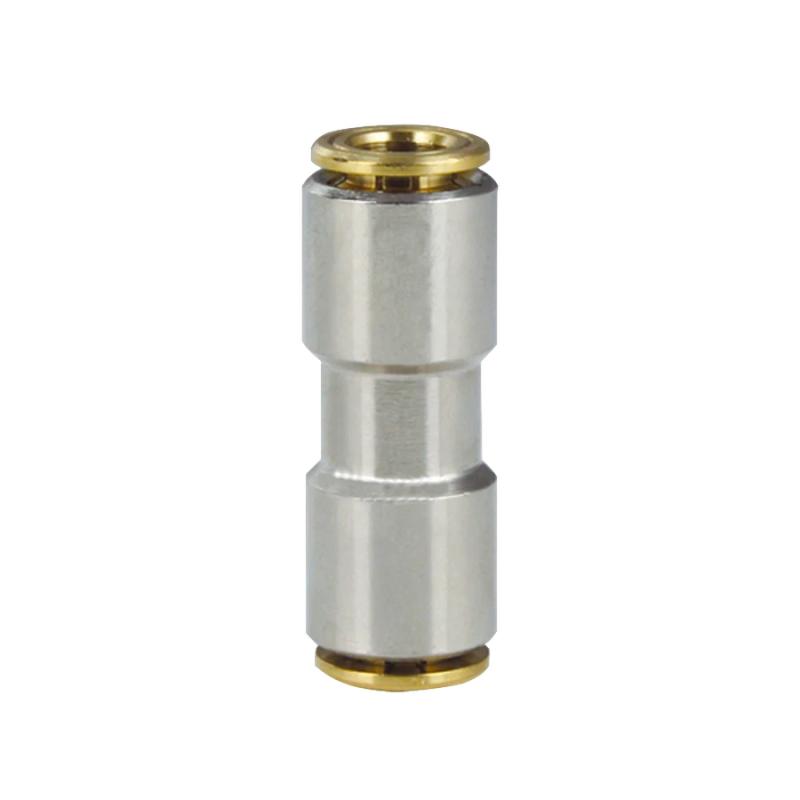

Medium Pressure Push-in Fittings, 80 bar 4MM MP260404
| TYPE | MAT | D1 | WT | WP | AF | D1IN | G | L1 | L1IN | OZ | VAR_TUBO | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MP26 04 04 | Brass Nickel Plated | 9 | -20/+80 °C | 0/80 bar | --- | 0,354 | 10,7 | 30 | 1,181 | 0,377 | 4 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP26 06 06 | Brass Nickel Plated | 12 | -20/+80 °C | 0/80 bar | --- | 0,472 | 15,7 | 34,5 | 1,358 | 0,554 | 6 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MP26 08 08 | Brass Nickel Plated | 14 | -20/+80 °C | 0/80 bar | --- | 0,551 | 20,2 | 35 | 1,378 | 0,713 | 8 | 0/1160 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
