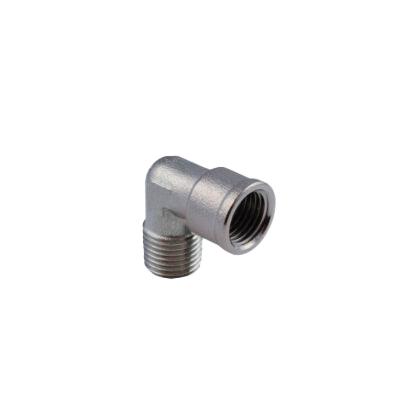

FITADA 90° M F 1/8 1/8 >RA22 18 18

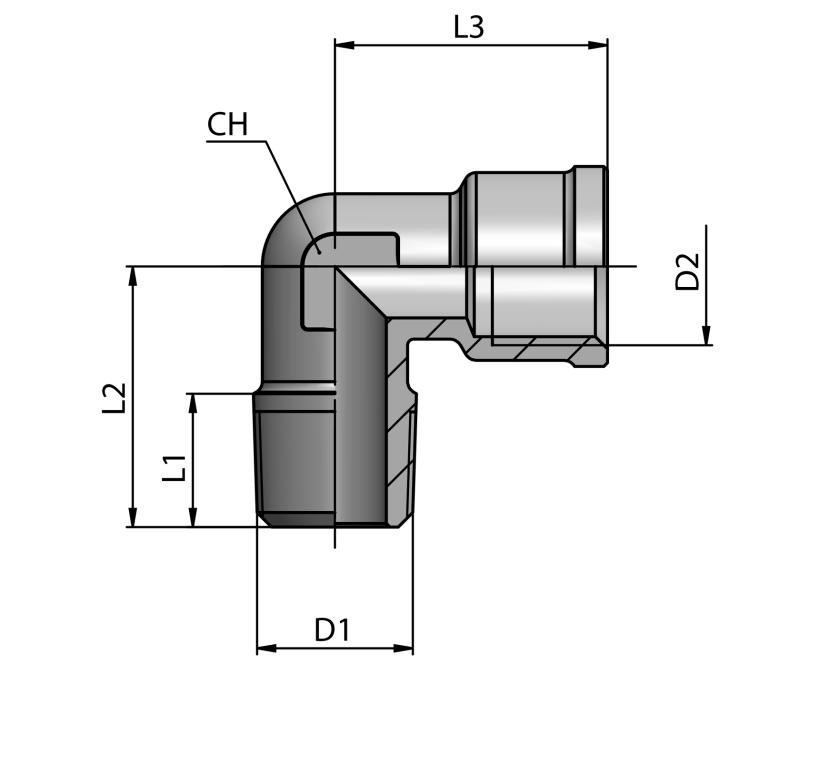

| CODE | TYPE | MAT | D1 | WT | WP | AF | D2 | CH | G | L1 | L1IN | L2 | L2IN | L3 | L3IN | OZ | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| 05120001 | RA22 18 18 | Brass Nickel Plated | R1/8 | -40/+150 °C | 0/60 bar | General Pneumatics | G1/8 | 10 | 12,6 | 8,2 | 0,323 | 17 | 0,669 | 18,5 | 0,728 | 0,444 | 0/870 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 05120002 | RA22 14 14 | Brass Nickel Plated | R1/4 | -40/+150 °C | 0/60 bar | General Pneumatics | G1/4 | 12 | 23,9 | 11 | 0,433 | 21,5 | 0,846 | 22,5 | 0,886 | 0,843 | 0/870 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 05120003 | RA22 38 38 | Brass Nickel Plated | R3/8 | -40/+150 °C | 0/60 bar | General Pneumatics | G3/8 | 15 | 40,9 | 12 | 0,472 | 24,5 | 0,965 | 25,5 | 1,004 | 1,443 | 0/870 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 05120004 | RA22 12 12 | Brass Nickel Plated | R1/2 | -40/+150 °C | 0/60 bar | General Pneumatics | G1/2 | 19 | 74,7 | 14 | 0,551 | 29,5 | 1,161 | 30 | 1,181 | 2,635 | 0/870 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 05120005 | RA22 34 34 | Brass Nickel Plated | R3/4 | -40/+150 °C | 0/60 bar | General Pneumatics | G3/4 | 25 | 98,1 | 16 | 0,63 | 33 | 1,299 | 36,5 | 1,437 | 3,46 | 0/870 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 05120006 | RA22 1 1 | Brass Nickel Plated | R1" | -40/+150 °C | 0/60 bar | General Pneumatics | G1" | 30 | 164 | 17 | 0,669 | 39 | 1,535 | 45 | 1,772 | 5,785 | 0/870 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
