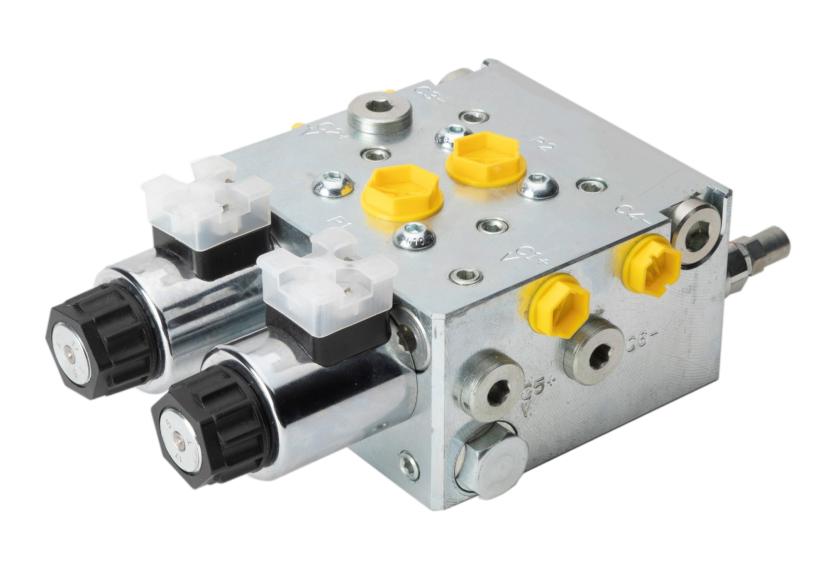

Valve for V plough E6338PV
-connection R3/8", (T, P1,P2) R1/2"

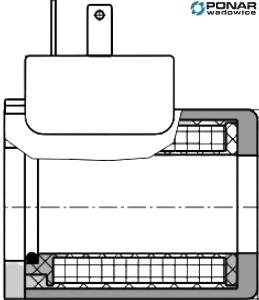

-voltage 24VDC (for 12VDC 2X 1220012 coils)
-flow 50 l/min
-max. pressure 210 bar
-adjustable shock relief valves V C1 and V C2 (wings, piston side)
-fixed s hock relief valves with inlet valves V C3 and V C4 (wings, piston rod side
-T connection to pressure accumulator or tank.
Assemply instructions:
Left wing cylinder Right wing cylinder
-outgoing connection to piston side C2+ -outgoing connection to piston side C1+
-outgoing connection to rod side C3 -outgoing connection to rod side C4
Incomming Tank-or pressure accumulator:T
pressure: P1 and P2
Functions:
Power off--> Wings operate diagonally
Power on left coil
Left wing in operation
Power on right coil
Right wing in operation.
Power on both coils--> Wings operate simultaneously in or out
(wings connected in parallel without flow distribution)
