COMMANDER 150° - 1SN PLUS - 1 1/2" - 50
1004663
SAE 100 R1AT - ISO 1436-1 - UNI EN 853 1SN

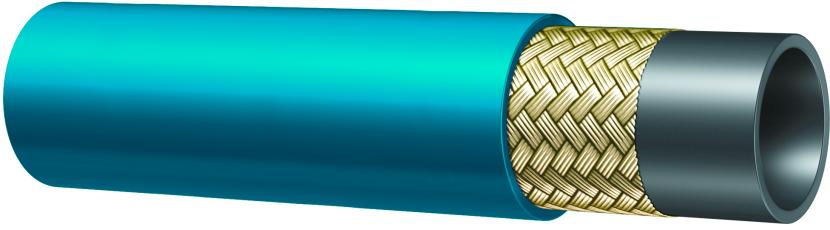

Tube: oil resistant synthetic rubber.
Reinforcement: one high tensile steel braid.
Cover: smooth up to 1", wrapped over 1". Blue abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Specially designed for high temperature applications. Not recommended for steam service.
Temperature: -40 °C +150 °C (-40 °F +300 °F)
air max T up to 5/8" = +85 °C (+185 °F)
air max T over 3/4" = +110 °C (+230 °F)
Length: random up to 5/8" - 61 m max over 3/4"
DH SCAN crimp short code: 150PLUS-1SN
ID (Dash): 24
ID (mm): 38
ID (in): 1 1/2"
OD (mm): 49,2
WP (Bar): 50
WP (psi): 730
BP (Bar): 200
BP (psi): 2900
BR (mm): 500
Weight (kg/m): 1,443
DH SCAN crimp short code: (http://crimp.dunlophiflex.se/Home/Index/DK): 150PLUS-1SN
| Item Code | ID (Dash) | ID (mm) | ID (in) | OD (mm) | OD (in) | WP (Mpa) | WP (psi) | BP (Mpa) | BP (psi) | BR (mm) | BR (in) | Weight (kg/m) | Weight (lb/ft) |
| 1004656 | 4 | 6 | 1/4" | 12,7 | 0,5 | 22,5 | 3250 | 90 | 13000 | 100 | 3,94 | 0,206 | 0,14 |
| 1004657 | 6 | 10 | 3/8" | 16,6 | 0,65 | 18 | 2610 | 72 | 10500 | 130 | 5,12 | 0,307 | 0,21 |
| 1004658 | 8 | 13 | 1/2" | 19,7 | 0,78 | 16 | 2320 | 64 | 9280 | 180 | 7,09 | 0,379 | 0,26 |
| 1004659 | 10 | 16 | 5/8" | 22,7 | 0,89 | 13 | 1900 | 52 | 7560 | 200 | 7,87 | 0,436 | 0,3 |
| 1004660 | 12 | 19 | 3/4" | 26,9 | 1,06 | 10,5 | 1530 | 42 | 6000 | 240 | 9,45 | 0,581 | 0,4 |
| 1004661 | 16 | 25 | 1" | 34,8 | 1,37 | 8,8 | 1280 | 35,2 | 5100 | 300 | 11,81 | 0,915 | 0,62 |
| 1004662 | 20 | 32 | 1 1/4" | 42,1 | 1,66 | 6,3 | 920 | 25,2 | 3680 | 420 | 16,54 | 1.121 | 0,76 |
| 1004663 | 24 | 38 | 1 1/2" | 49,2 | 1,94 | 5 | 730 | 20 | 2900 | 500 | 19,69 | 1.443 | 0,97 |
| 1004664 | 32 | 51 | 2" | 62,4 | 2,46 | 4 | 600 | 16 | 2320 | 630 | 24,8 | 1.911 | 1,29 |
