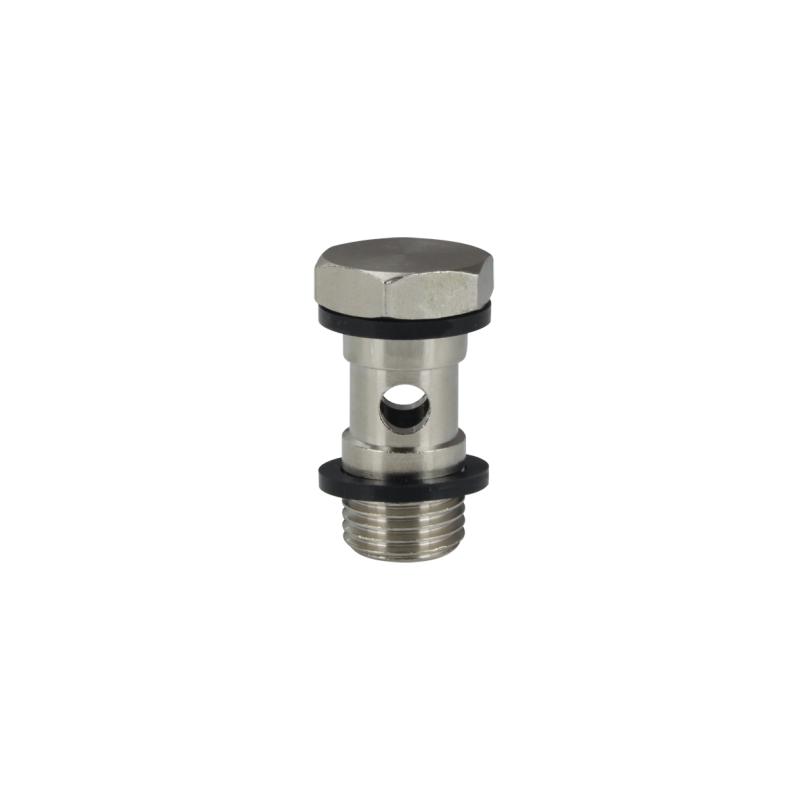

Banjo male screw single - MA31 00 12
G1/2
4205082

Udvendig gevind: 1/2
MA31 00 12
A0210004
MOQ/Box size: 10

Part Number: A0210004
Description: MA31 00 12
Weight (kg): 0,0805
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/2
Tube size (en):
Configuration (en): Other
Product Family (en): Push-In Fittings
D tube: -
D tube2: -

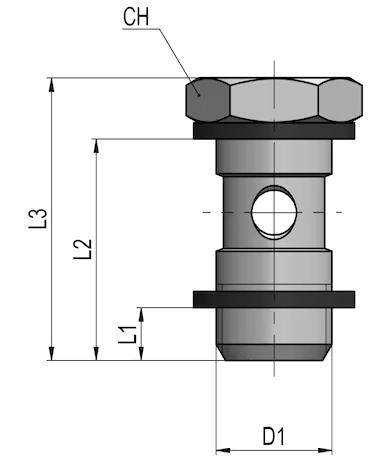

D1: G1/2
D1 (in): -
D2: -
D2 (in): -
D3: -
D3 (in): -
L1: 7,5
L2: 33,5
L2 (in): 1.319
L3: 41,5
L3 (in): 1.634
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 26
CH2: -
