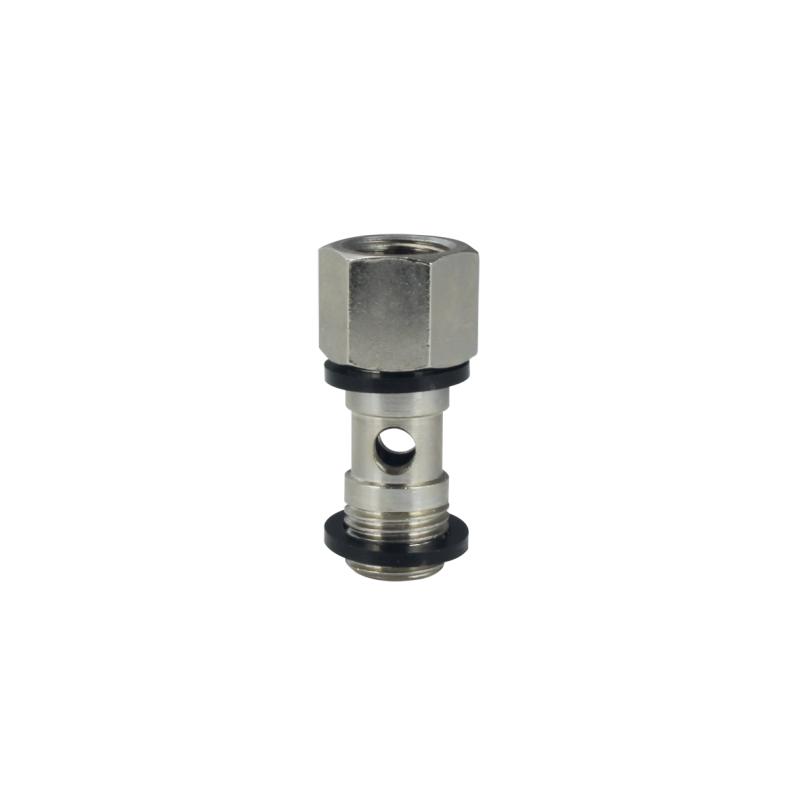

Part Number: A0230002
Description: MA33 00 14
Weight (kg): 0,0325
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/4
Tube size (en):
Configuration (en): Other
Product Family (en): Push-In Fittings

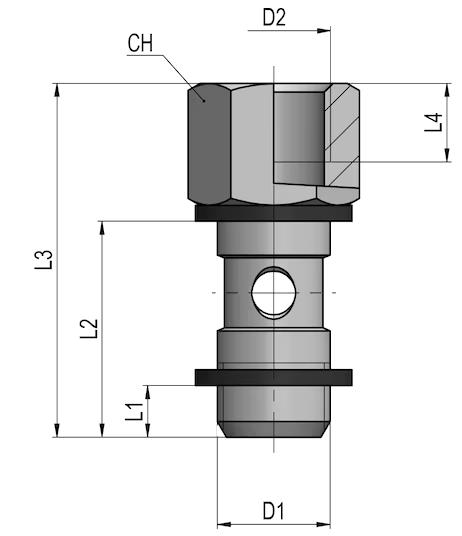

D tube: -
D tube2: -
D1: G1/4
D1 (in): -
D2: G1/4
D2 (in): -
D3: -
D3 (in): -
L1: 5,9
L2: 24,7
L2 (in): .972
L3: 40,5
L3 (in): 1.594
L4: 10
L4 (in): .394
L5: -
L5 (in): -
CH: 17
CH2: -
