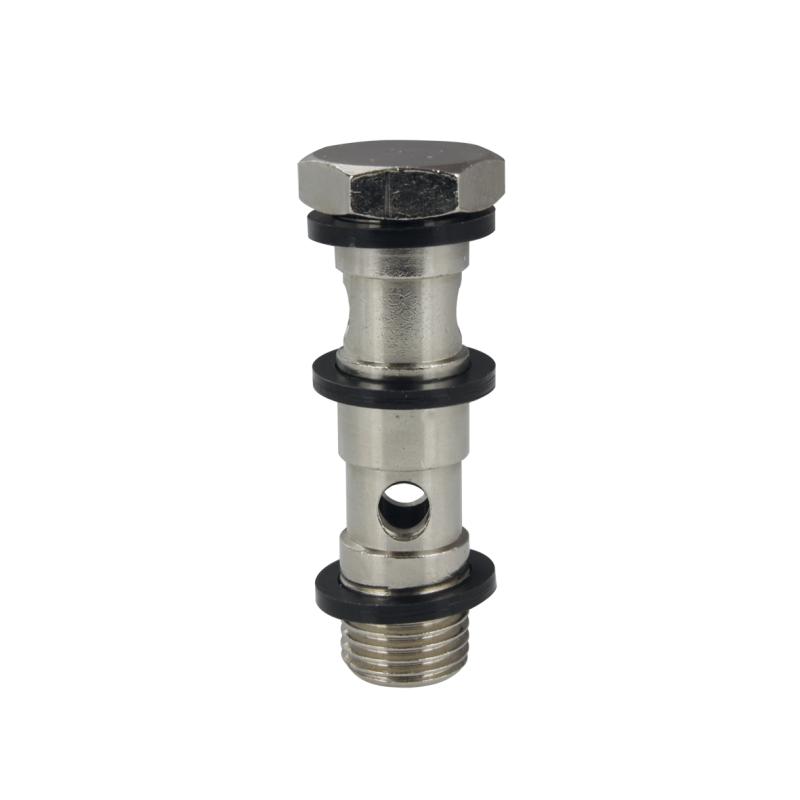

Part Number: A0220003
Description: MA32 00 38
Weight (kg): 0,0635
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G3/8
Tube size (en):
Configuration (en): Other
Product Family (en): Push-In Fittings
D tube: -
D tube2: -

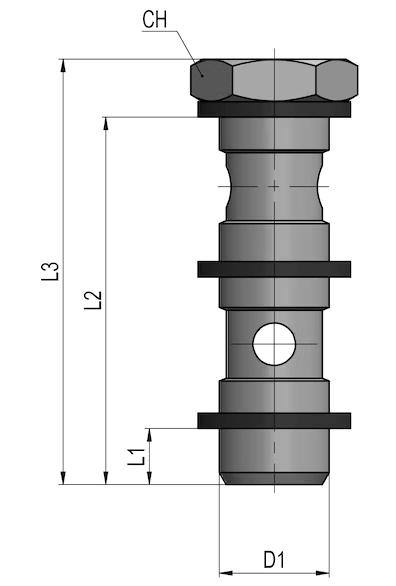

D1: G3/8
D1 (in): -
D2: -
D2 (in): -
D3: -
D3 (in): -
L1: 6,1
L2: 49,7
L2 (in): 1.957
L3: 57,5
L3 (in): 2.264
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 20
CH2: -
